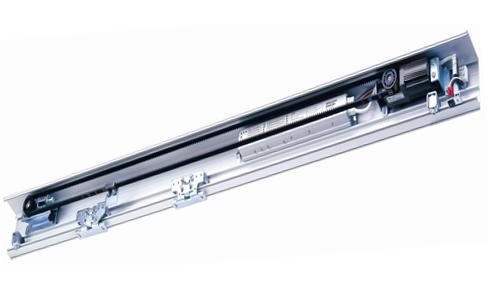

600~1250mm Double Leaf Automatic Sliding Door Parts Controller
The mute motor driving with special device to make this a sliding door drive more advanced and reliable, safe, steady, quiet, and suitable for operating under the various environment .
Motor: the brushless DC motor with efficient, strong function, and small in size. Gear box uses worm gears with brush with efficient and low noise to reduce the speed.
controller: this part is accepted from the human testing signal of sensor. Driving motor and the moving of the control gate can apply to the power 220 volts. Don't use the transformer on the side.
Track: using high hardness aluminum, simply cut off. Various open width can be adjusted to make sure that it can be installed in the best size.
Belt: Using timing belt with flexibility of small and high efficiency, so you need hardly due to the flexibility and make adjustments.
Hanger frame: this part is equipped with door sheave that can move on aluminum guide tail and can load bearing large door of 150 kg weight .
pulleys:The belt hangs on the tension wheel. This part is equipped with the institution of adjust the tensile force of the belt.
TECHNICAL SPECIFICATION:
|
Door Number |
Single Leaf |
Double Leafs |
|
Weight Door
|
≤150kg
|
≤150kg×2
|
|
Door Width
|
700~1300mm
|
600~1250mm
|
|
Control Device
|
Microcomputer Manage and Control Device
|
|
Motor
|
DC 24V 55W Motor Without Brush |
|
Opening Speed
|
15~50cm/Sec(Adjustable)
|
15~45cm/Sec(Adjustable) |
|
Closing Speed |
10~45cm/Sec(Adjustable) |
10~43cm/Sec(Adjustable) |
|
Open Door Pause Time
|
Adjustable within 0.5~8Sec |
|
Manual Push Force |
Maximum 4.5kg |
|
Power and Voltage |
AC200~250 50/60HZ
|
|
Working Temperature
|
-20+50°C
|
|
Optional Parts
|
Full/Half Open, Interlock, Punch the Card, Electric Lock |
