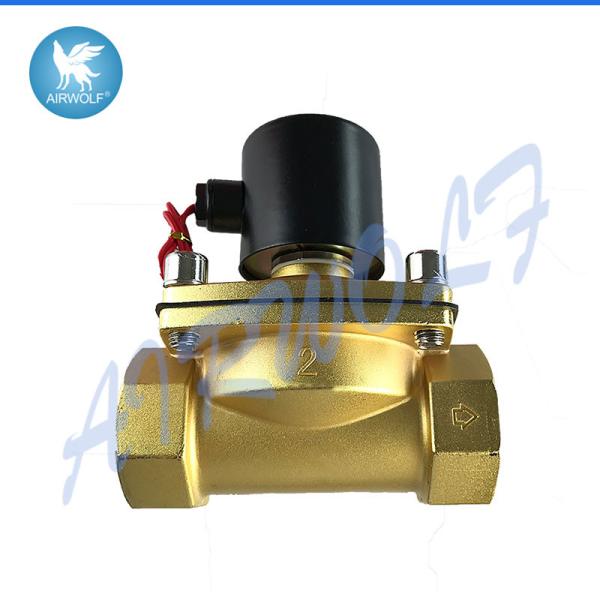

2W-500-50 2inch solenoid valve Brass Normally Closed 2/2way water Valve AC220VDC24V
| 2W Series 2/2 way Direct Acting Solenoid Valve |
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2WH012-06 | 2WH012-08 | 2WH020-10 |
| Medium | Air,Water,Oil,Gas |
| Operation | Direct Acting |
| Type | Normal Close |
| Orifice Size(mm) | 2.5 | 4 | 1.2 | 2 |
| CV Value | 0.23 | 0.6 | 0.05 | 0.15 |
| Port Size | G1/8" | G1/4" | G3/8" | G1/8" | G1/4" | G3/8" |
| Operation Fluid Viscosity | Below 23 CST |
| Operating Pressure | Air,Water,Oil,Gas:0~0.7Mpa | Air,Water,Oil,Gas:0~0.2Mpa |
| Max Pressure Resistance | 1.0MPa | 3.5MPa |
| Operating Temperature | NBR for -5~80°C and fluororubber for -5~80°C |
| Voltage Range | ±10% |
| Material of Body | Stainless Steel or Brass |
| Material of Oil Seal | NBR,EPDM or fluororubber |
2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.
Materials:
| PARTS | MATERIAL |
| Body | Cast Bronze/ Forge Brass/Zinc Alloy |
| Coil | Special Copper Wire (H) |
| Core | Stainless Steel |
| Tube | Stainless Steel |
| Spring | Stainless Steel |
| Plug | NBR.fluororubber .Silicon, PTFE |
| Diaphragm | NBR.fluororubber .Silicon
|
