Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599

Name: Festo Push In Fitting QSG188 186098 GTIN4052568014599
Brand: FESTO
Price: 1 USD

Quality Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599 for sale

Brand Name : FESTO

Model Number : QS-G1/8-8

Place of Origin : China

MOQ : 1 PCS

Price : EXW USD2-3

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8000 pcs per week

Delivery Time : 7-10 working days

Packaging Details : plastic bag, carton

Specifications : QS-G1/8-8

Order no : 186098

Brand : FESTO

Product weight : 13 g

Material tubing clamp component : High-alloy stainless steel

Material release ring : POM

Contact Now

Push-in fitting QS-G1/8-8 186098 GTIN4052568014599

About product

1.The stainless steel retaining claw holds the tubing securely without damaging its surface.

2.The tapered ISO R threads have a self-sealing PTFE coating, which allows the fitting to be re-used up to five times without the need for additional sealing components.

Product Technical Data

Size	Standard
Nominal size	6 mm
Type of seal on screw-in stud	Sealing ring
Mounting position	optional
Size of pack	10
Design	Push-pull principle
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10°C-80°C
Nominal torque	7 Nm
Product weight	13 g
Pneumatic connection, port 1	Male thread G1/8
Pneumatic connection, port 2	For tubing outside diameter of 8 mm
Colour of release ring	Blue
Note on materials	RoHS-compliant
Material housing	Brass Nickel-plated
Material release ring	POM
Material tubing seal	NBR
Material tubing clamp component	High-alloy stainless steel

Dimensions and ordering data

Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599

There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!

Product Tags:

QS-G1/8-8 Pneumatic Tube Fittings

Festo Pneumatic Push In Fitting

186098 Pneumatic Tube Fittings

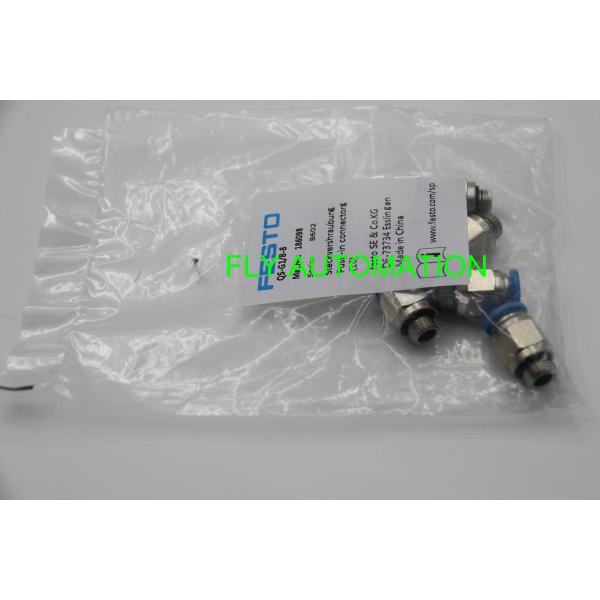

Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599 Images
